D38999 Series III Connectors

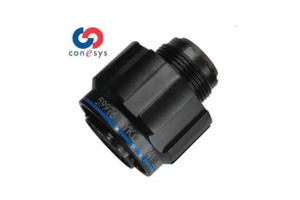

d38999-III Connector

D38999 Series III circular connectors are high-performance cable to panel interconnects making them suitable for military, aerospace and harsh environment applications.

The MIL-DTL-38999 Series III  range of military connectors (commonly known as D38999 III) features a number of body styles, contact termination options, body materials and platings. Consequently, these connectors suit a wide variety of electronic, mechanical and environmentally demanding applications. Up to 128 contacts are available in a number of defined high-density insert arrangements with a reliable tri-start coupling.

Price and delivery

We are the most competitively priced supplier of approved MIL-DTL-38999 Series III connectors. Apollo Aerospace is fully approved to AS9100 Rev D and can assemble to meet your requirements.

Contact us now for fast turnaround in 48 hours from receipt of order.

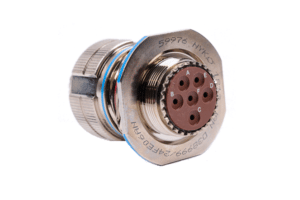

D38999 24FE06AN Connector

QPL listed Assembling Distributor for Conesys

Apollo Aerospace Components assembly facility is fully approved to AS9100 Rev D, AS9120 Rev B and ISO9001 2015 and is QPL listed as an Assembling Distributor for Conesys (Aero Electric Connector, Inc). Therefore, we can assemble MIL-DTL-38999 III connectors to meet your specific requirements with fast turnaround available.

Apollo is also approved by Conesys as a value-add assembling distributor for VG95319-1006, 1007 & 1008 connectors, the VG approved MIL-DTL-38999 Series III connector.

Fast turnaround of finished product is available from an extensive UK stock holding ensuring shortest delivery times, best price and no minimum order quantity of approved product.

Features

  • Scoop proof crimp contacts
  • Triple start mating thread
  • One full turn to mate
  • Full mate indicator
  • Keying options
  • Industry standard contact arrangements
  • EMI shielding to 65dB minimum at 10 GHz

Benefits

  • High density in a rugged package
  • Reliable fast mating
  • Self locking with visual confirmation
  • Improved shielding compared to bayonet variants
  • Massive range of accessories

Conesys MIL-DTL-38999 Series III Datasheet

MIL-DTL-38999-Series-III-Product-SheetMIL-DTL-38999 Series III Connectors Product Sheet

AS85049-Product-SheetAS85049 backshells for MIL-DTL-38999 Series III Product Sheet

M39029-Contacts-Product-SheetM39029 contacts for MIL-DTL-38999 Series III Product Sheet

Conesys Franchised Distributor Certification

DLA 38999 Documentation – VQP-18-031857

Integrated Backshell D38999 Connectors

Integrated backshell connectors are built to conform with the MIL-DTL-38999 series III specification so are therefore fully intermateable and interchangeable with D38999 III products.

These connectors offer the performance advantages of D38999 with the following benefits over a traditional connector/backshell pairing:

  • quicker assembly;
  • space saving;
  • lower weight;
  • time-saving during ordering;
  • reduced inventory holding.

The one-piece shell construction completely integrates the straight backshell thereby enabling screen termination using either band or spring. They are manufactured in both aluminium and stainless steel with various plating options available, including Black Zinc Nickel across the 3 shell styles.

Integrated Backshell Part Number Development Table

Accessories

Need accessories? These circular connectors can be ordered with a very broad range of compatible accessories, be it a simple strain relief clamp, a fully sealed RFI/EMI compatible backshell or a custom design, thereby enabling Apollo to meet the most demanding project requirements.

Apollo Aerospace Components stock a comprehensive range of circular connector backshells and protective caps (D38999-32 and D38999-33) from EMCA Electro-mechanic to suit the customers’ specific requirements.

For more information contact the team or visit the relevant product page.
